Daekko – Compact Power, Maximum Efficiency

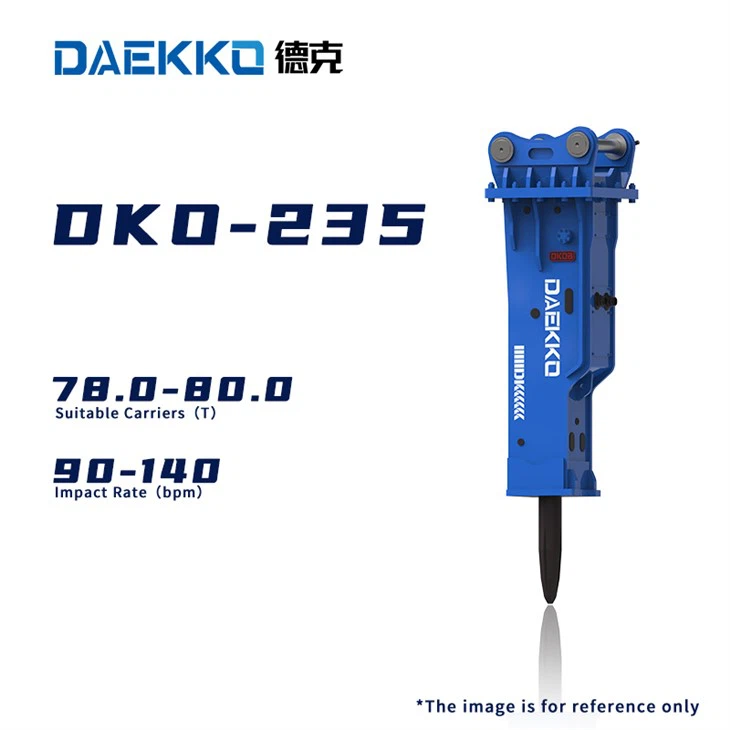

DKO-235 Heavy Hydraulic Breaker

Hydraulic rock typically refers to rock that has been fractured or broken using hydraulic power. Hydraulic mechanisms, often powered by pressurized fluids, are utilized in various equipment such as hydraulic breakers (also known as hydraulic hammers) mounted on excavators or skid-steer loaders. These tools deliver rapid and powerful blows to rock surfaces, effectively breaking them into smaller pieces or fragments.

Side Mounted Type

Model Number		DKO-235
Weight	kg	9800
Dimensions(LWH)	mm	39368352050
Oil Flow Rate	L/min	390-480
Operating Pressure	bar	300-340
Impact Rate	bpm	90-140
Hose Diameter	inch	1-1/2
Working Tool Diameter	mm	φ230
Nitrogen Gas Pressure(Back Head)	bar	28-32
Nitrogen Gas Pressure(Accumulator)	bar	75-85
Noise 85dB(A)-Distance	m	60-65
Carrier Weight	T	75-78

Top Mounted Type

Model Number		DKO-235
Weight	kg	10500
Dimensions(LWH)	mm	45128451090
Oil Flow Rate	L/min	390-480
Operating Pressure	bar	300-340
Impact Rate	bpm	90-140
Hose Diameter	inch	1-1/2
Working Tool Diameter	mm	φ230
Nitrogen Gas Pressure(Back Head)	bar	28-32
Nitrogen Gas Pressure(Accumulator)	bar	75-85
Noise 85dB(A)-Distance	m	60-65
Carrier Weight	T	75-78

Sound Suppressed Type

Model Number		DKO-235
Weight	kg	9975
Dimensions(LWH)	mm	44218451090
Oil Flow Rate	L/min	390-480
Operating Pressure	bar	300-340
Impact Rate	bpm	90-140
Hose Diameter	inch	1-1/2
Working Tool Diameter	mm	φ230
Nitrogen Gas Pressure(Back Head)	bar	28-32
Nitrogen Gas Pressure(Accumulator)	bar	75-85
Noise 85dB(A)-Distance	m	60-65
Carrier Weight	T	75-78

DKO-235 Heavy Hydraulic Breaker

Side Mounted Type

Top Mounted Type

Sound Suppressed Type
