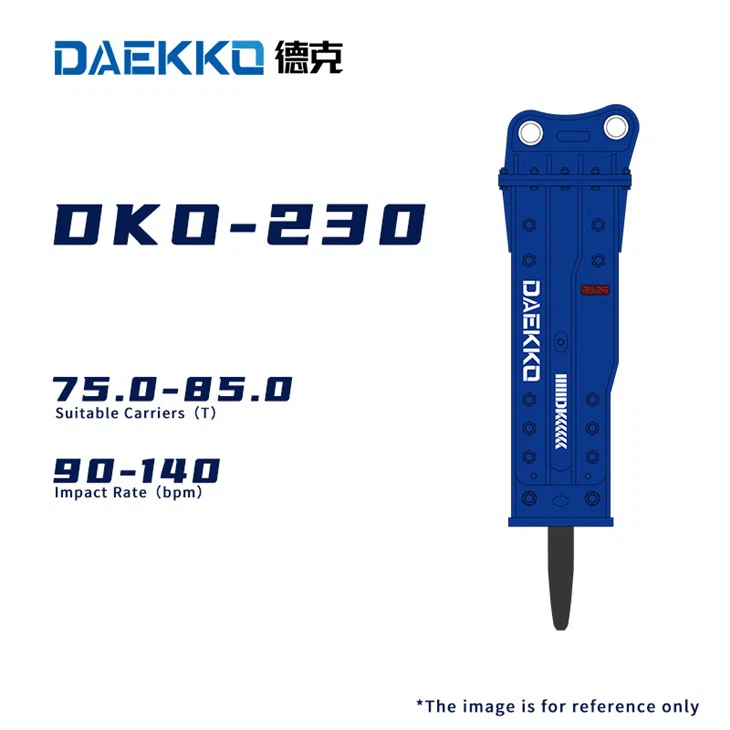

DKO-230 Heavy Hydraulic Breaker

Hydraulic rock typically refers to rock that has been fractured or broken using hydraulic power. Hydraulic mechanisms, often powered by pressurized fluids, are utilized in various equipment such as hydraulic breakers (also known as hydraulic hammers) mounted on excavators or skid-steer loaders. These tools deliver rapid and powerful blows to rock surfaces, effectively breaking them into smaller pieces or fragments.

Side Mounted Type

Model Number DKO-230
Weight kg 9516
Length mm 3104
Work Flow L/min 380-470
Work Pressure bar 300-340
Setting Pressure bar 350
Impact Frequency bpm 90-140
Hose Diameter inch 1-1/2
Chisel Diameter mm φ230
Chisel Length mm 1950
Chisel Weight kg 513
Nitrogen Gas Pressure(Back Cylinder) bar 28-32
Nitrogen Gas Pressure(Accumulator) bar 75-85
Carrier Tonnage T 75-85

Top Mounted Type

Model Number DKO-230
Weight kg 10500
Length mm 3833
Work Flow L/min 380-470
Work Pressure bar 300-340
Setting Pressure bar 350
Impact Frequency bpm 90-140
Hose Diameter inch 1-1/2
Chisel Diameter mm φ230
Chisel Length mm 1950
Chisel Weight kg 513
Nitrogen Gas Pressure(Back Cylinder) bar 28-32
Nitrogen Gas Pressure(Accumulator) bar 75-85
Carrier Tonnage T 75-85

Sound Suppressed Type

Model Number DKO-230
Weight kg 9975
Length mm 3889
Work Flow L/min 380-470
Work Pressure bar 300-340
Setting Pressure bar 350
Impact Frequency bpm 90-140
Hose Diameter inch 1-1/2
Chisel Diameter mm φ230
Chisel Length mm 1950
Chisel Weight kg 513
Nitrogen Gas Pressure(Back Cylinder) bar 28-32
Nitrogen Gas Pressure(Accumulator) bar 75-85
Carrier Tonnage T 75-85
