DKO-195 Hydraulic Breaker Machinery

Hydraulic rock generally refers to rock that has been fractured or broken using hydraulic power. Hydraulic systems, powered by pressurized fluid, are employed in various types of equipment—such as hydraulic breakers (also known as hydraulic hammers) mounted on excavators or skid-steer loaders. These tools deliver rapid, high-force impacts to rock surfaces, effectively breaking them into smaller pieces or fragments.

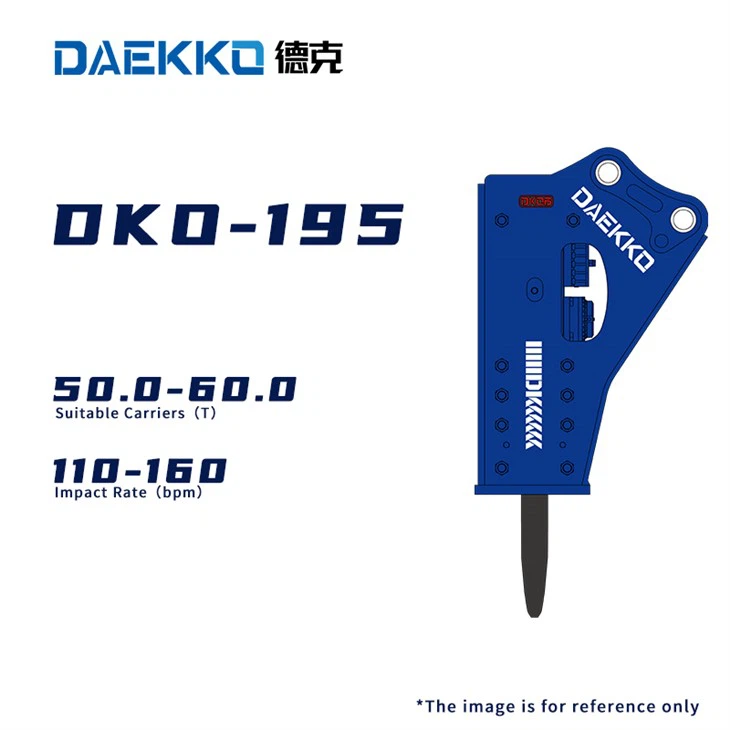

Side Mounted Type

Model Number DKO-195
Weight kg 5450
Length mm 2625
Work Flow L/min 260-320
Work Pressure bar 280-320
Setting Pressure bar 345
Impact Frequency bpm 110-160
Hose Diameter inch 1-1/4
Chisel Diameter mm φ195
Chisel Length mm 1750
Chisel Weight kg 330
Nitrogen Gas Pressure(Back Cylinder) bar 28-32
Nitrogen Gas Pressure(Accumulator) bar 75-85
Carrier Tonnage T 50-60

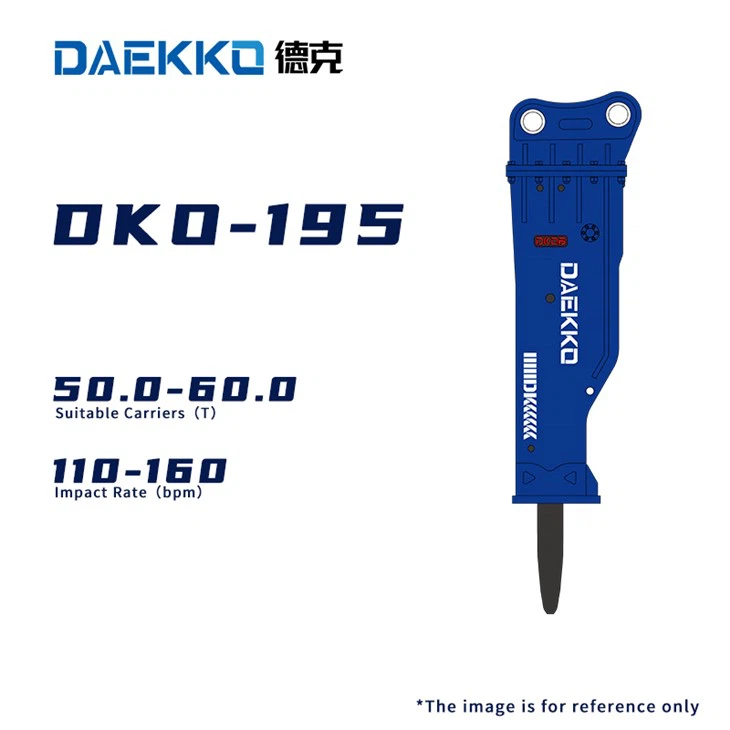

Top Mounted Type

Model Number DKO-195
Weight kg 5620
Length mm 3220
Work Flow L/min 260-320
Work Pressure bar 280-320
Setting Pressure bar 345
Impact Frequency bpm 110-160
Hose Diameter inch 1-1/4
Chisel Diameter mm φ195
Chisel Length mm 1750
Chisel Weight kg 330
Nitrogen Gas Pressure(Back Cylinder) bar 28-32
Nitrogen Gas Pressure(Accumulator) bar 75-85
Carrier Tonnage T 50-60

Sound Suppressed Type

Model Number DKO-195
Weight kg 5512
Length mm 3225
Work Flow L/min 260-320
Work Pressure bar 280-320
Setting Pressure bar 345
Impact Frequency bpm 110-160
Hose Diameter inch 1-1/4
Chisel Diameter mm φ195
Chisel Length mm 1750
Chisel Weight kg 330
Nitrogen Gas Pressure(Back Cylinder) bar 28-32
Nitrogen Gas Pressure(Accumulator) bar 75-85
Carrier Tonnage T 50-60
