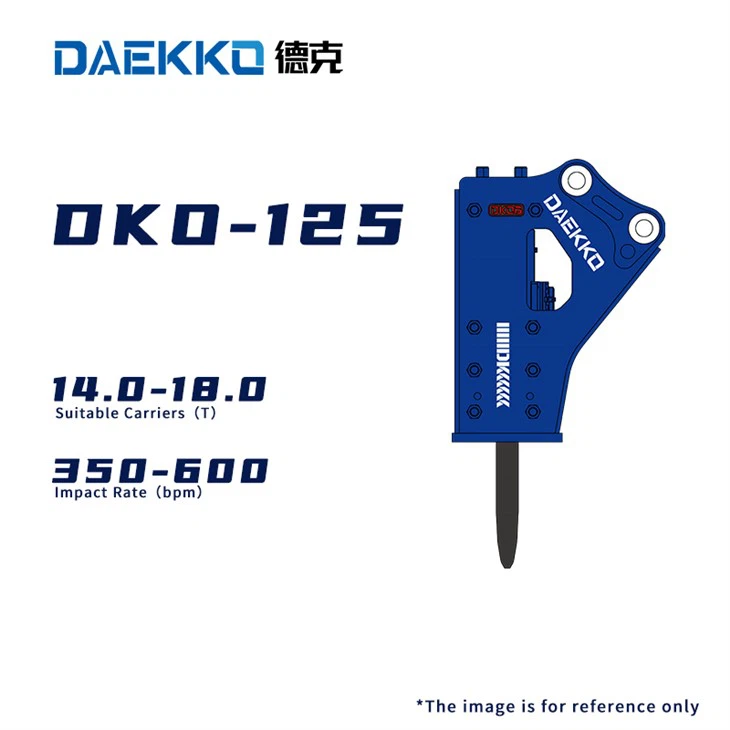

DKO-125 Hydraulic Rock Breaker

Side mounted type

Hydraulic rock typically refers to rock that has been fractured or broken using hydraulic power. Hydraulic mechanisms, often powered by pressurized fluids, are utilized in various equipment such as hydraulic breakers (also known as hydraulic hammers) mounted on excavators or skid-steer loaders. These tools deliver rapid and powerful blows to rock surfaces, effectively breaking them into smaller pieces or fragments.

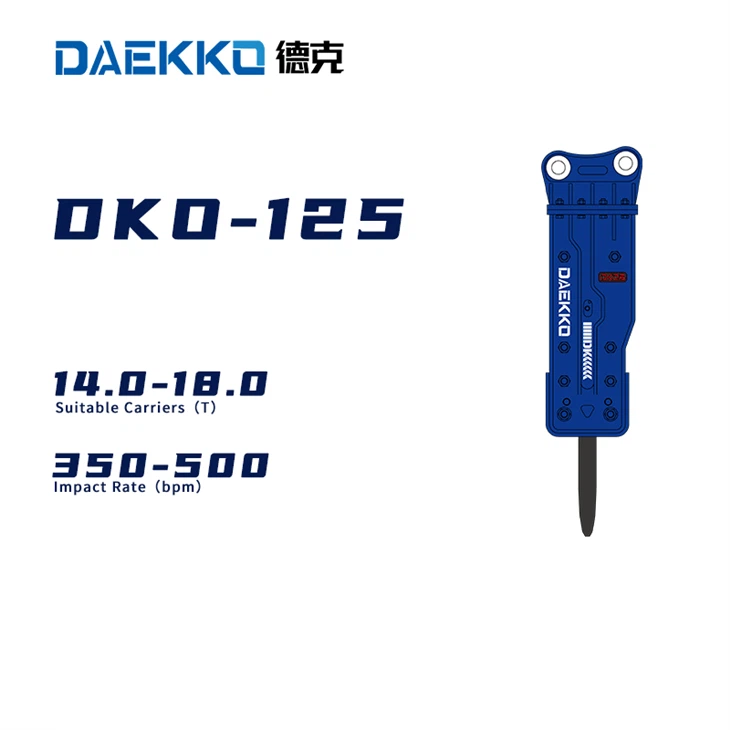

Top mounted type

There are many kinds of adaptive excavators, which have good generality, long length, wide working range and are widely used abroad. Mostly used for demolition, tunnel operation and slag crushing.

Sound suppressed type

The one-piece bracket is engineered with a simplified structure and side hollows to ensure ease of maintenance. Its cost-efficiency and durability make it a preferred choice in domestic markets, especially in excavation and mining applications

Model Number DKO-125
Weight kg 1362
Length mm 1590
Work Flow L/min 15-30
Work Pressure bar 90~120
Setting Pressure bar 130
Impact Frequency bpm 800-1400
Hose Diameter inch 1/2
Chisel Diameter mm φ40
Chisel Length mm 450
Chisel Weight kg 7
Nitrogen Gas Pressure(Back Cylinder) bar 14~17
Nitrogen Gas Pressure(Accumulator) bar /
Carrier Tonnage T 0.5-1.5
Model Number DKO-125
Weight 1535 1535
Length mm 2065
Work Flow L/min 100-130
Work Pressure bar 150~170
Setting Pressure bar 210
Impact Frequency bpm 350~500
Hose Diameter inch 1
Chisel Diameter mm φ125
Chisel Length mm 1200
Chisel Weight kg 72
Nitrogen Gas Pressure(Back Cylinder) bar 14~17
Nitrogen Gas Pressure(Accumulator) bar 55-60
Carrier Tonnage T 14-18
Model Number DKO-125
Weight kg 2631
Length mm 2043
Work Flow L/min 100~130
Working Pressure bar 150~170
Setting Pressure bar 210
Impact Frequency bpm 350~500
Hose Diameter inch 1
Chisel Diameter mm φ125
Chisel Length mm 1200
Chisel Weight kg 72
Nitrogen Gas Pressure(Back Cylinder) bar 14~17
Nitrogen Gas Pressure(Accumulator) bar 55-60
Carrier Tonnage T 14-18
